Square Magnet

Description & Features

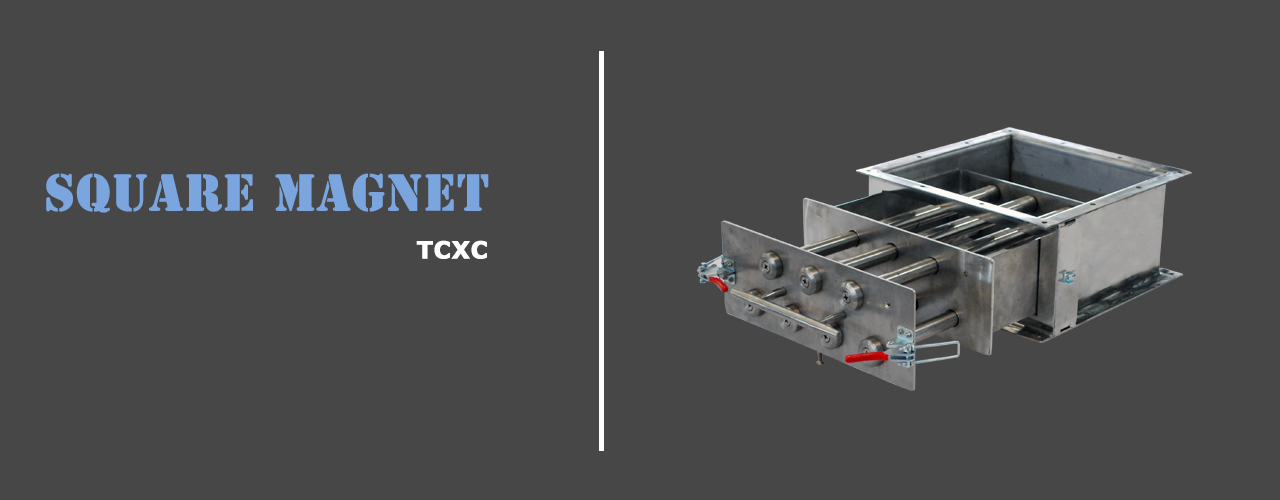

TCXC Square (draw) magnet is widely used in cereal, feed, food and chemical industry. Which can separate the metal mixed in material. It make sure the product safe.

1. Rare magnet core, high Gauss.
2. Customized size is available
3. Easy to install and maintain.
4. All stainless steel construction.



Product Specification

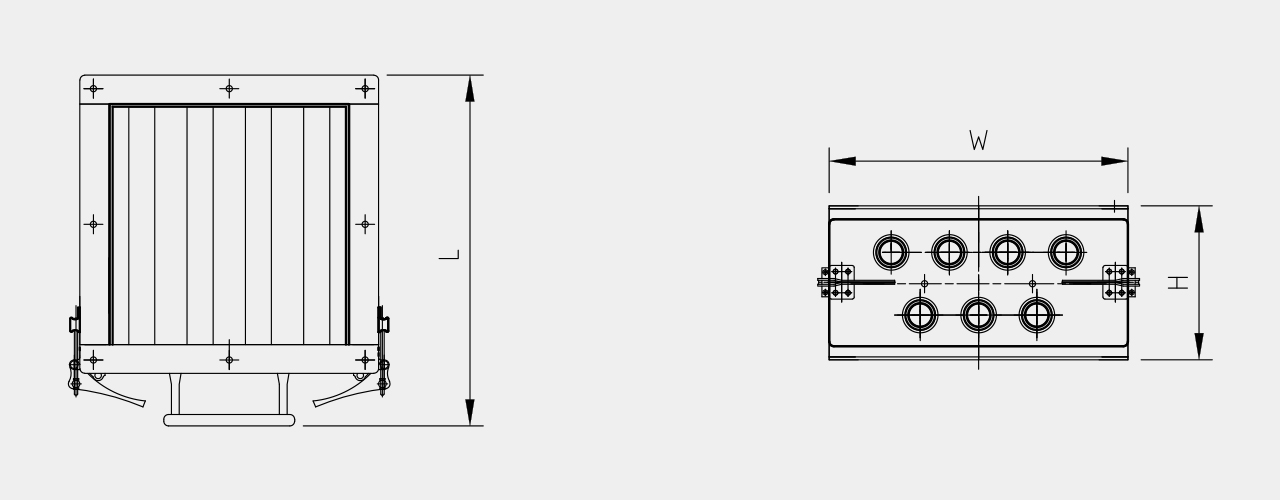

Model	No. of Magnet core.	Capacity	Dimension
TCXT25	5 pcs	8~16t/h	365x310x160mm
TCXT30	7 pcs	10~20t/h	422x360x160mm
TCXT40	7 pcs	20~40t/h	525x460x200mm
TCXT50	9 pcs	25~50t/h	625x560x200mm
